產品簡介

真空斷路器是電力系統中普遍使用的高壓電器，其核心部件是真空滅弧室，由于滅弧室是以真空條件作為工作基礎的，所以它不象油開關，SF6開關那樣容易檢測其質量。傳統上，真空斷路器用戶判斷滅弧室真空度的方法是工頻耐壓法，這種方法只能粗略判斷真空度嚴重化的滅弧室。

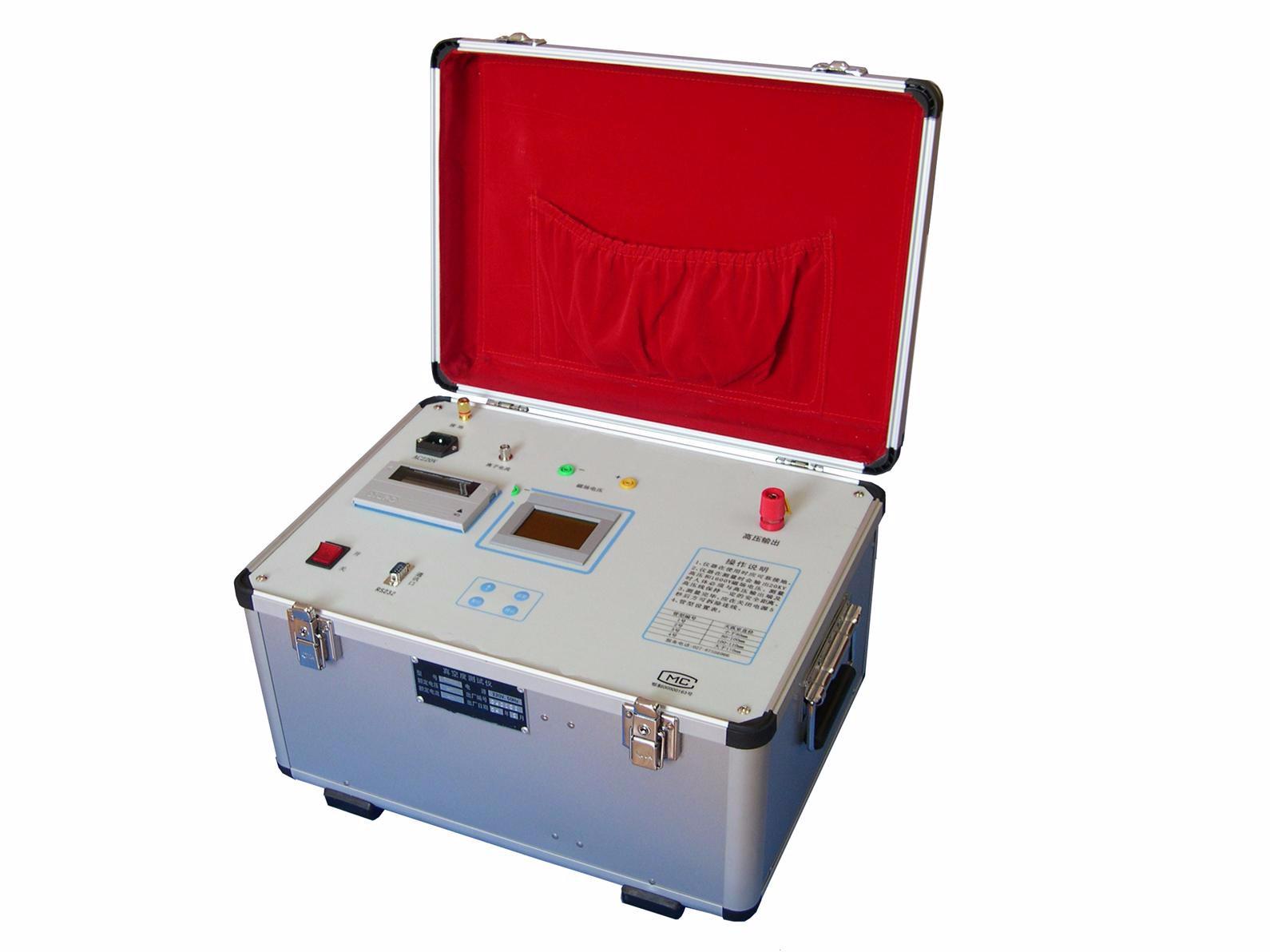

NAZKD真空開關真空度測試儀是真空滅弧室的真空度的鑒定設備，以單片計算機為主控單元，測試過程完全實現自動化。該儀器的采樣設計一改以往采用電流峰值做標定的方法，而采用離子電荷來做標定。這樣，有效地抑制了測試過程中瞬態電源的干擾，使測試穩定可靠。由于采用計算機為主控單元，該儀器能很方便地扣除由于環境因素產生的漏電電流。本儀器最突出的特點是：實現了真空滅弧室的免拆卸測量，直接顯示真空度值，使真空斷路器用戶詳細掌握滅弧室的真空狀態，為有計劃地更換滅弧室提供了可靠的依據，為電網的安全運行提供了有力保障，克服了工頻耐壓法僅能判斷滅弧室是否報廢的缺陷。

產品別名

真空度測試儀、高壓開關真空度測試儀、真空度測量?jī)x、真空開關真空度測試儀、高壓開關真空度測量?jī)x

產品特性

1、可定量測量各種型號真空開關滅弧室內的真空度；

2、現場測量時不需拆卸真空開關；

3、測試結果準確可靠；

4、液晶漢字顯示，操作更加簡單方便；

5、可保存、打印、查看測試的歷史試驗數據；

6、儀器帶有RS232通訊接口，可以連接計算機,實現通過計算機對儀器控制與操作等多種功能；

7、儀器重量輕，攜帶方便；

產品參數

1、電 ???源：AC220V+15%，50Hz；

2、測量范圍: 10-4～10-1Pa；

3、電場電壓: 20KV；

4、磁場電壓: 1600V；

5、測試精度:10-4～10-3Pa ??20%～25%;

?????????????10-3～10-2Pa??15%～20%;

?????????????10-2～10-1Pa??10%～15%;

6、使用環境: -10℃～40℃；

7、外形尺寸: 460mm×335mm×330mm。

8、主機重量: 12kg

Product introduction

With the non-oil pressure switch rise of the tide, with its unique advantages vacuum switch has been widely promoted andapplied.Traditional detectionmethod is "pressure method", that is breaking the vacuum switch is in a state in which static and dynamic touch certain voltage is applied between the head, the size oftheleakage current detected,the quality of vacuum inferred. Advantages of this method are: simple operation; drawback: only qualitatively detect the quality of vacuum tube; and the degree ofvacuum10-4 ~ 10-1Pa can notaccurately distinguish between, it is impossible to determine the leakage trends.

NAZKD?vacuum switch vacuum tester, the previous generation of products based on the upgrading of the product. The productiscompact, light andcompact models, shorter test time, measurement reliability, stability, higher accuracy, function more perfect.

Also called name

vacuum degree tester, HV switch vacuum switch tester

The Characteristics of the products

1. can make quantitative measurement for vacuum degree of all models vacuum switch arc-chutes .

2. Need not disassemble the vacuum switch during the field test.

3. High precision.

4. With LCD, easy to operate.

5. Can save, print and review the test results.

6. The device with RS232 communication interface, connect with the PC can download the vacuum degree-ion current curve, canestimatethe life.

7. Light in weight, easy to carry

The parameters of the products

1. Power supply: AC220V+15%, 50Hz

2. Measurement range: 10-4～10-1 Pa

3. Electric field voltage: 20KV

4. Magnetic field voltage: 1600V

5. Accuracy: 5%

6. Temperature: -10℃~40℃

7. Dimension: 460mmx335mmx330mm

8. Weight: 12kg
