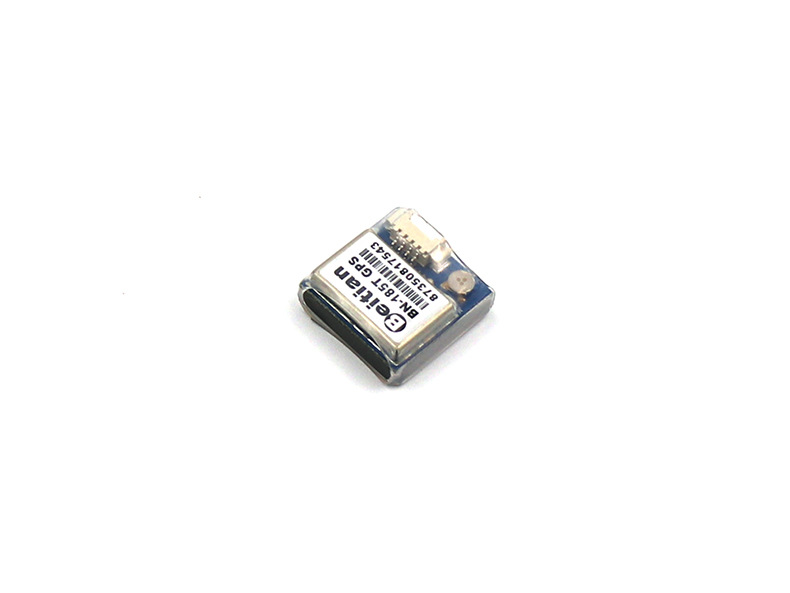

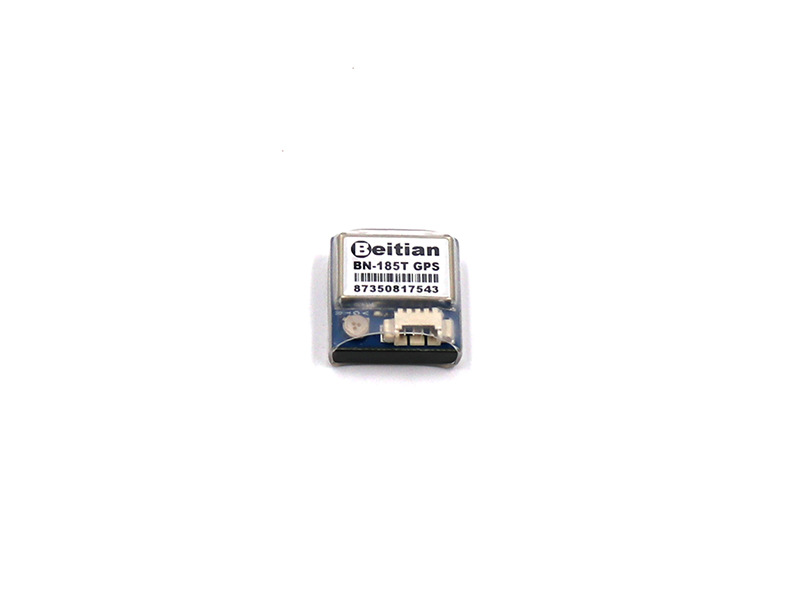

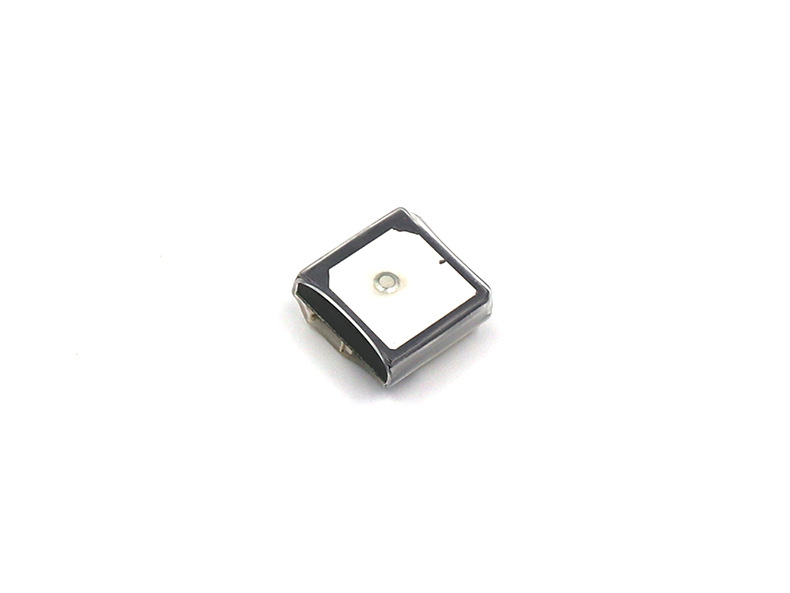

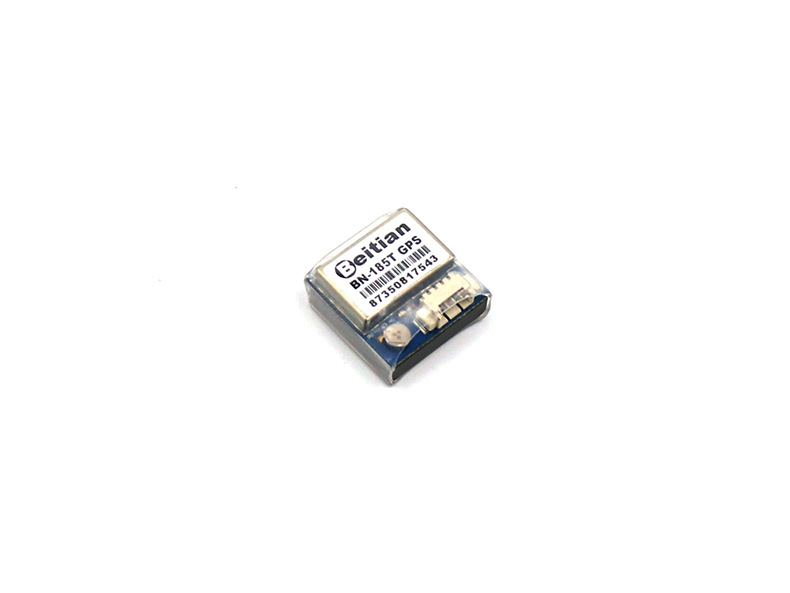

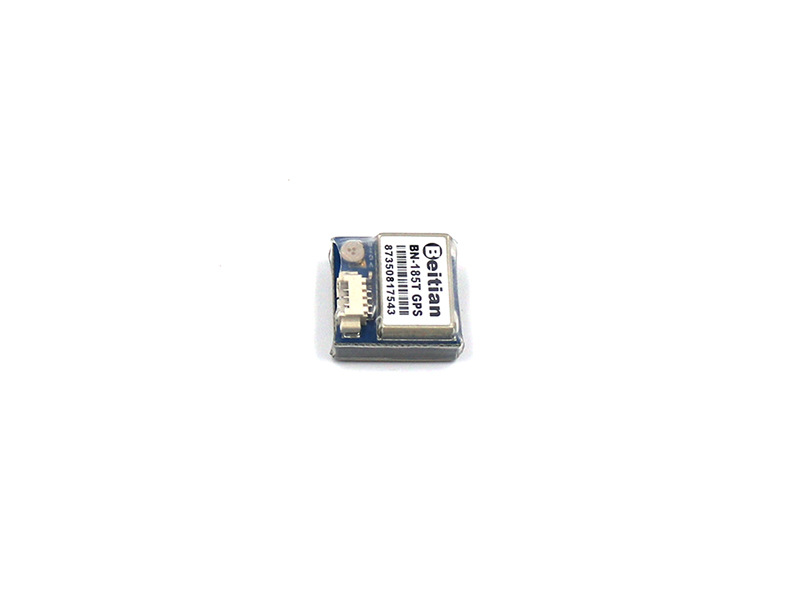

產品型號：BN-185T                      售后服務：產品三包

如需了解具體請聯系李工手機：13902445319?。?！

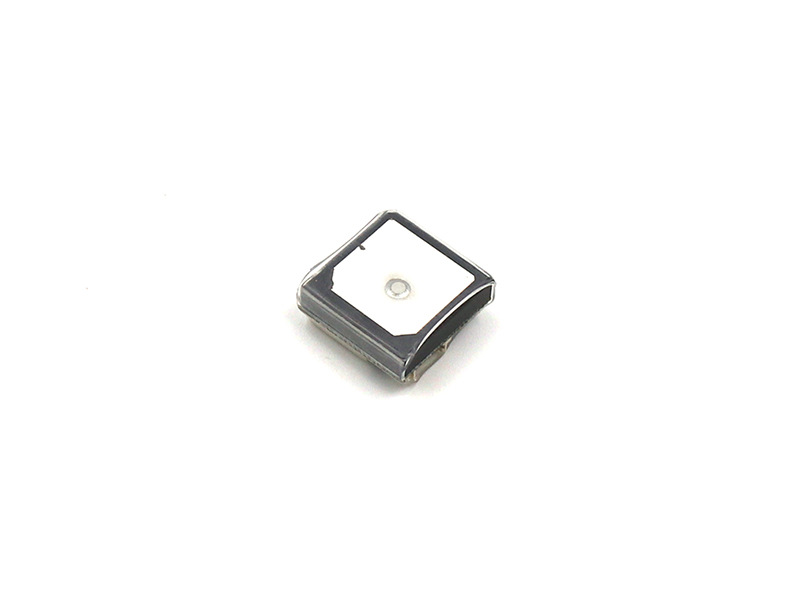

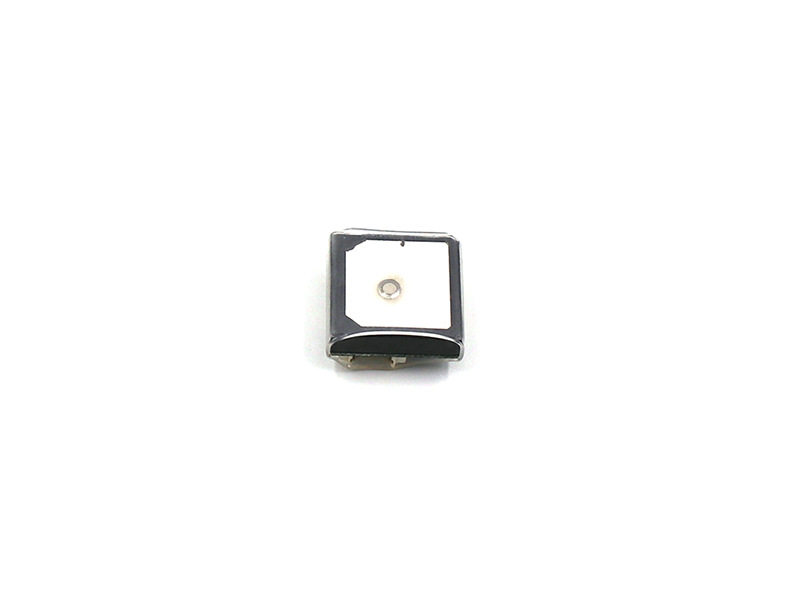

全球極小尺寸，極輕GLONASS+GPS 雙模GPS，僅8.1g。

默認出貨：GPS+GLONASS雙模定位，內置FLASH，5V供電，TTL電平，9600，1HZ輸出，NMEA-0183協議輸出。

注明：該一體模塊，內部帶FLASH，可以保存配置。可以更改波特率，頻率，協議。對于需要更改配置的客戶，請?zhí)崆鞍演敵鲆蟾嬖V我們，我們按照要求進行更改配置，配置好后再發貨。

說明：該模塊可以設置成GPS+GLONASS雙模，也可以設置成GPS+北斗雙模。一般國外用GPS+GLONASS雙模，國內用GPS+北斗雙模。出貨前提前說明，沒有說明則按照默認GPS+GLONASS雙模出貨。

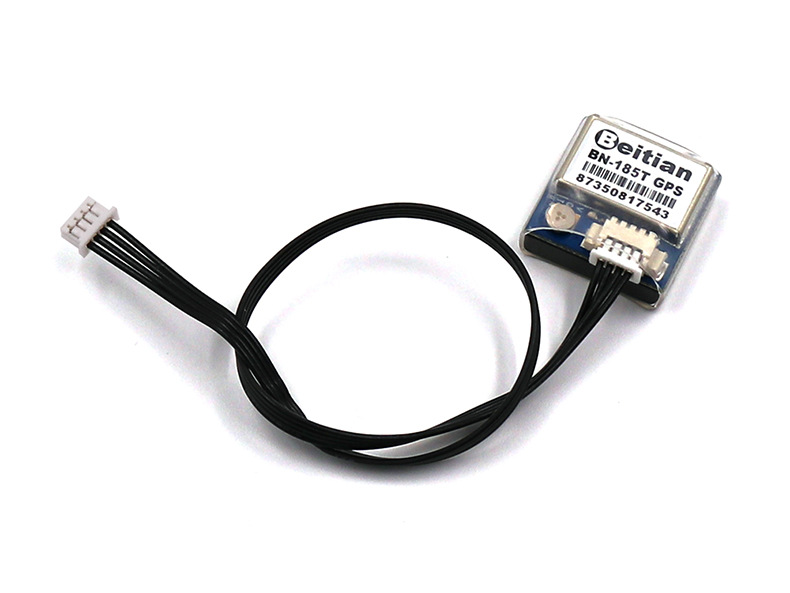

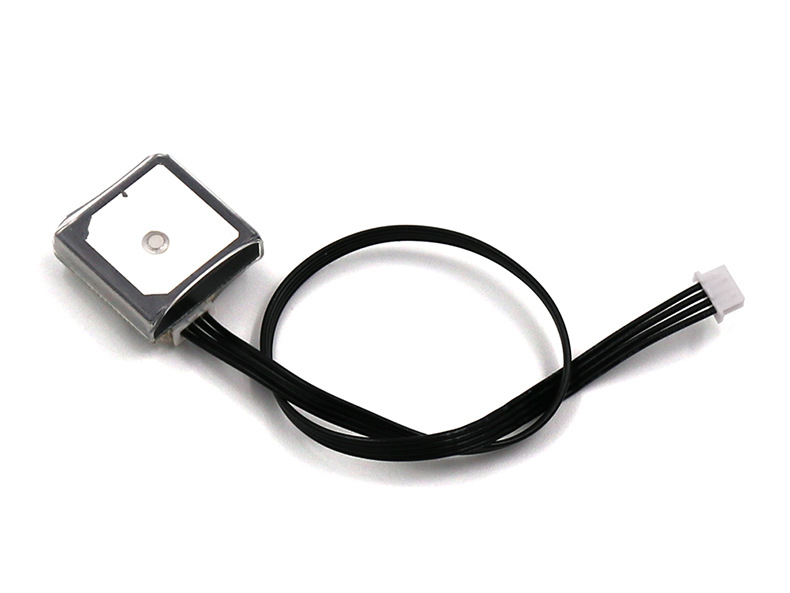

購買BN-185T GPS，將配送1根1.25間距4PIN雙頭20cm連接線。

管腳定義：

指示燈：

藍燈，TX燈，上電藍燈閃爍，表示有數據輸出。

GPS+GLONASS雙模模式數據輸出：

$GNRMC,013300.00,A,2240.84105,N,11402.70763,E,0.007,,220319,,,D*69$GNVTG,,T,,M,0.007,N,0.014,K,D*3A$GNGGA,013300.00,2240.84105,N,11402.70763,E,2,12,0.59,70.5,M,-2.5,M,,0000*68$GNGSA,A,3,10,12,14,20,25,31,32,26,29,40,41,22,1.09,0.59,0.91*1F$GNGSA,A,3,74,70,73,80,69,,,,,,,,1.09,0.59,0.91*17$GPGSV,4,1,16,01,00,300,,10,56,178,51,12,12,038,38,14,47,345,48*79$GPGSV,4,2,16,16,00,207,,18,06,275,30,20,28,165,43,22,10,319,43*76$GPGSV,4,3,16,25,46,050,47,26,29,205,44,29,13,108,45,31,50,296,52*7E$GPGSV,4,4,16,32,56,010,52,40,20,257,40,41,46,237,48,42,46,123,42*77$GLGSV,2,1,06,69,27,136,49,70,76,057,50,71,34,338,50,73,64,276,55*6B$GLGSV,2,2,06,74,24,231,46,80,35,019,46*60$GNGLL,2240.84105,N,11402.70763,E,013300.00,A,D*7C

GPS+GLONASS雙模模式數據輸出和信號測試：

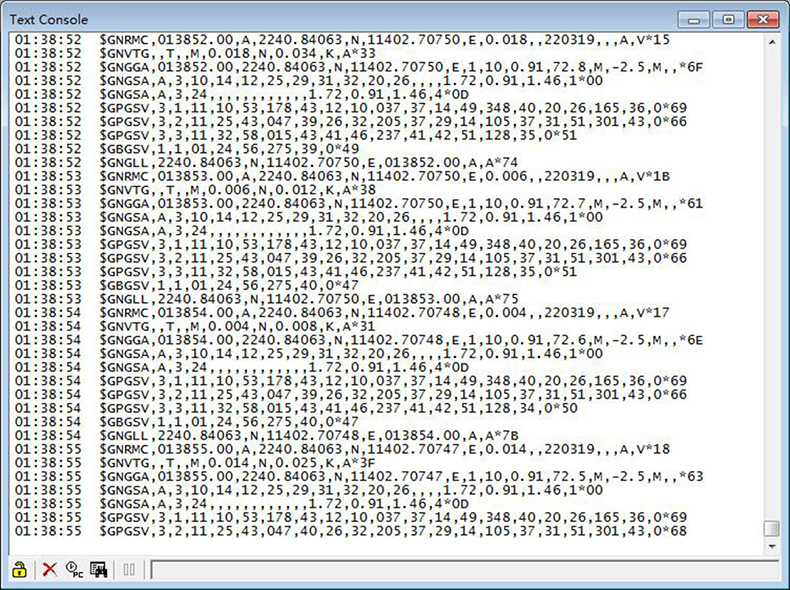

GPS+北斗雙模模式數據輸出：

$GNRMC,013854.00,A,2240.84063,N,11402.70748,E,0.004,,220319,,,A,V*17$GNVTG,,T,,M,0.004,N,0.008,K,A*31$GNGGA,013854.00,2240.84063,N,11402.70748,E,1,10,0.91,72.6,M,-2.5,M,,*6E$GNGSA,A,3,10,14,12,25,29,31,32,20,26,,,,1.72,0.91,1.46,1*00$GNGSA,A,3,24,,,,,,,,,,,,1.72,0.91,1.46,4*0D$GPGSV,3,1,11,10,53,178,43,12,10,037,37,14,49,348,40,20,26,165,36,0*69$GPGSV,3,2,11,25,43,047,39,26,32,205,37,29,14,105,37,31,51,301,43,0*66$GPGSV,3,3,11,32,58,015,43,41,46,237,41,42,51,128,34,0*50$GBGSV,1,1,01,24,56,275,40,0*47$GNGLL,2240.84063,N,11402.70748,E,013854.00,A,A*7B

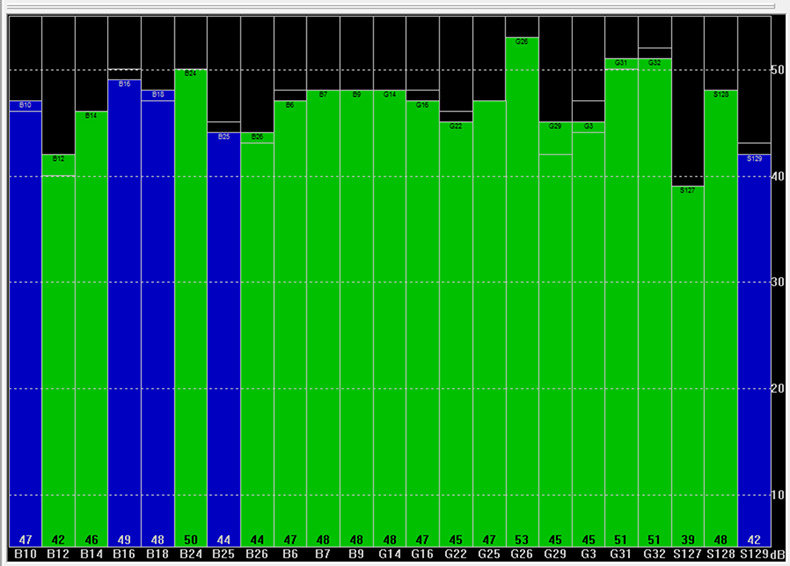

GPS+北斗雙模模式數據輸出和信號測試：
