蘇州赤狐智能科技有限公司 致力于裁切分切解決方案的廠家,
研發生產:新型分切裁切分切設備,貼合設備,高速分條機,精密分切機,大型裁切機,非標定制及自動化。
R&D and production: new cutting cutting cutting equipment, fitting equipment, high-speed cutting machine, precision cutting machine, large cutting machine, non-cutting machine
特 點:

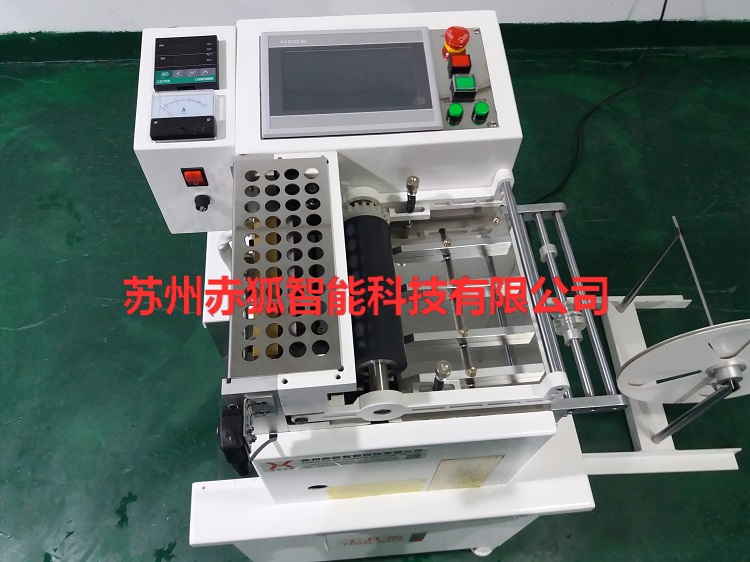

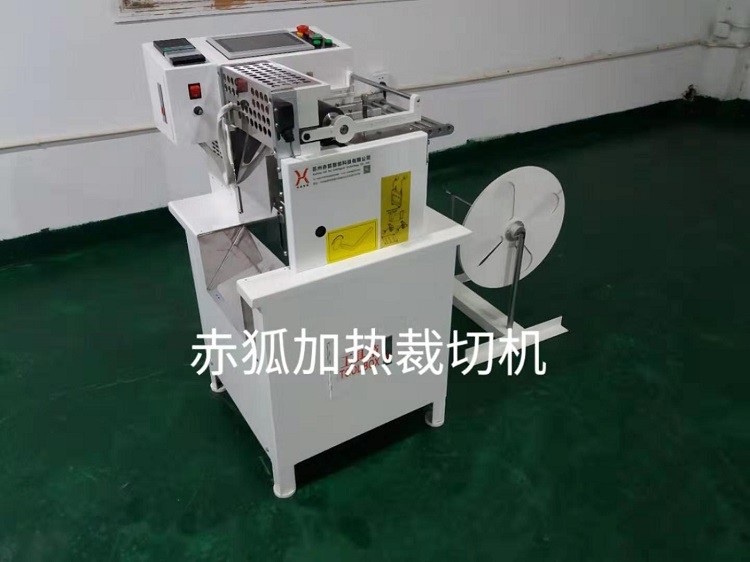

熱切機采用微電腦數控裝置設定切帶長度,切刀附加熱裝置,可將織帶切口加熱固結,不產生毛邊。機型設計符合人體工程學原理,易于操作。
Feature:
This machine employs microcomputer controller to set belt cutting length. The knife is equipped with heater so that the cut edge can be heated and solidified without burrs. This machine is ergonomically designed. Operation is easy.
用 途:
裁切機適用于PP帶、尼龍帶、編織帶、松緊帶、繩類、絲帶、皮革、花邊、尼龍管等之定尺寸裁切,配合織帶機使用。
Application:
Sizing cutting for PP belt, nylon belt, woven belt and elastic band ,etc……
主要技術參數:
Main technical parameters:
型號Model | CH-160 A |
電壓Voltage | 220V |
動力Power | 1HP |
凈重N.W. | 90kg |
毛重GW. | 140kg |
裁切長度Cutting Length | 0.1~9999.9mm |
裁切寬度Cutting Width | 1~160mm |
裝箱尺寸Measurement | 550x550x1000mm |
